“Strong / Saving”
“High-efficiency footprint”
| Spec. / Products | SDX600 | SDT600 | SDX1200 | SDT1200 | SDX1800 | SDT1800 | SDH3000*5 | SDH6000*5 |
|---|---|---|---|---|---|---|---|---|

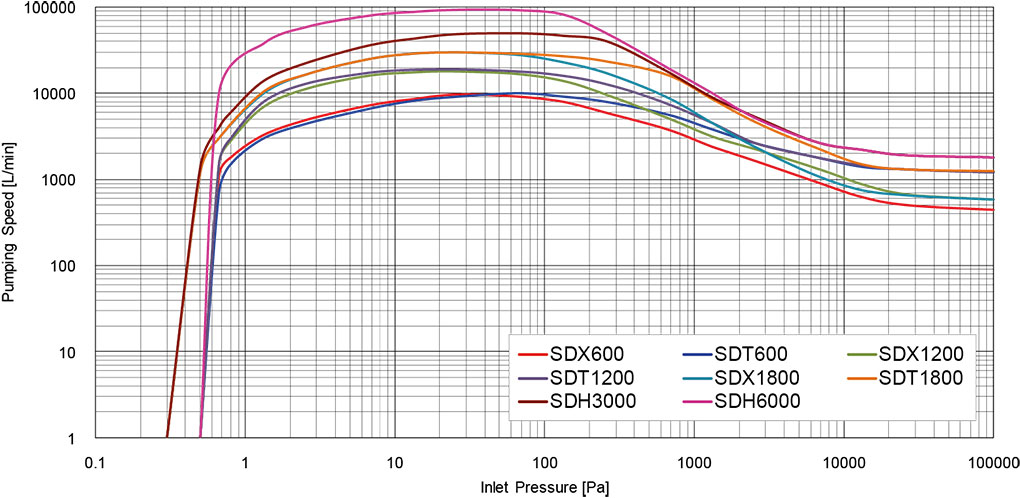

| Max. pumping speed [L/min] *1 *4 | 10,000 | 18,000 | 19,000 | 30,000 | 50,000 | 100,000 | ||
| Ultimate pressure [Pa] *1 | 0.5 | 0.3 | 0.5 | |||||
| Supply voltage (50/60Hz) | 3Phase AC200~220V*7 | |||||||
| N2 purge [SLM] | 0~80 | 0~120 | ||||||
| Cooling Water [L/min] | 3.0 | 4.0 | 3.0 | 4.0 | 3.0 | 4.0 | 4.0 | 4.0 |
| Power consumption *2 [kW] | 1.5 | 3.0 | 1.65 | 3.15 | 2.1 | 3.3 | 3.3 | 3.7 |
| Dimensions [mm] L×W×H *3 | 695×285×850 | 695×285×850 | 850×380×950 | 910×420×900 | 1050×515×950 | |||
*1) SDX: Energy-saving and harsh process-compatible model; SDT / SDH: Process-resistant and super-harsh process-compatible models
*2) Without N2 purge.
*3) Approximate power consumption during ultimate operation.
*4) Package dimensions. For detailed dimensions, Contact us for further details.
*5) We offer a lineup with even greater process resistance. Please contact your sales representative for more information
*6) Approximate Maximum exhaust speed.
* 국제 표준 준수에 대해서는 문의 바랍니다. 또한 사양 및 형식명에 관해서는 예고없이 변경 될 수 있습니다.
